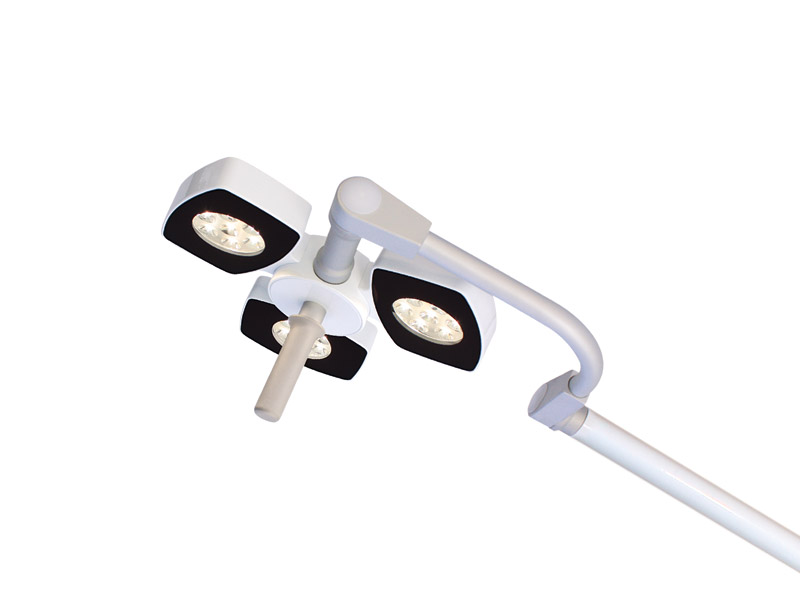

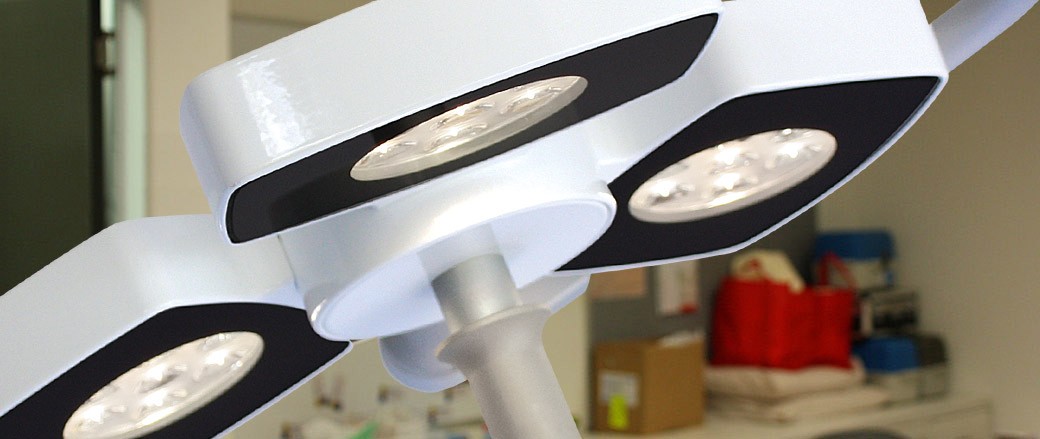

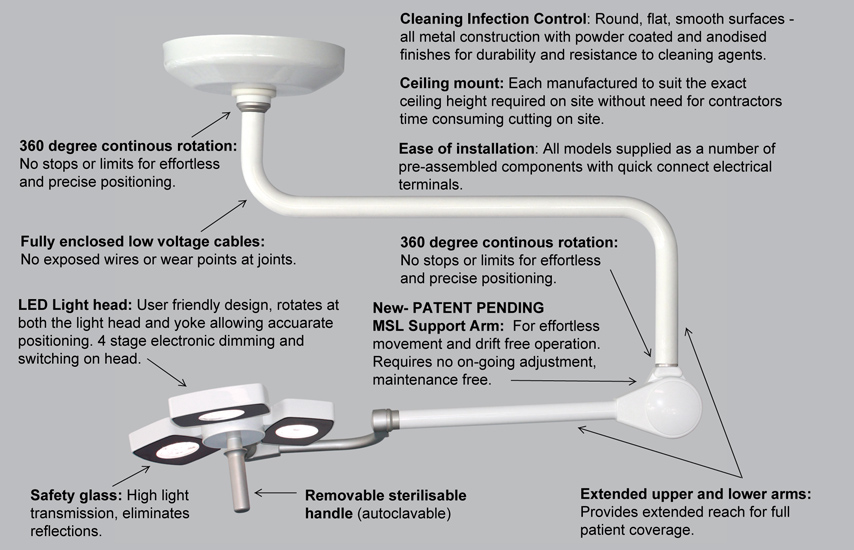

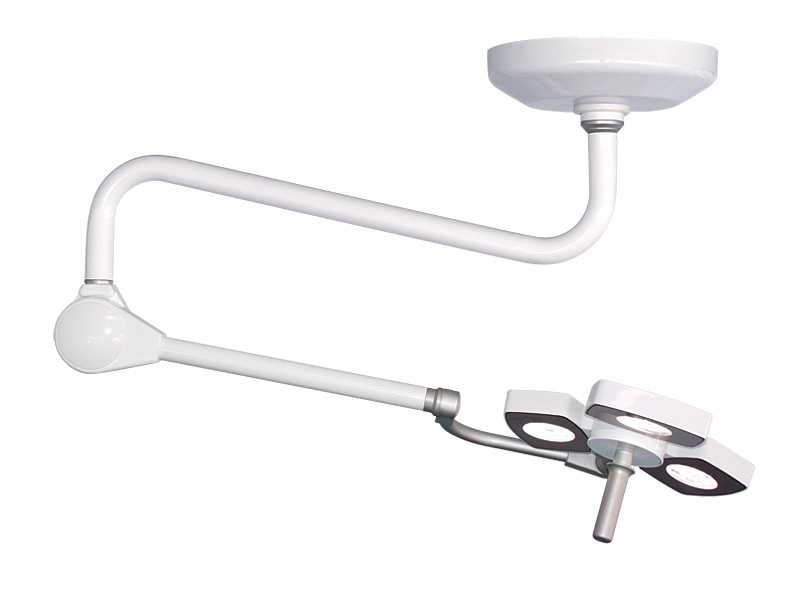

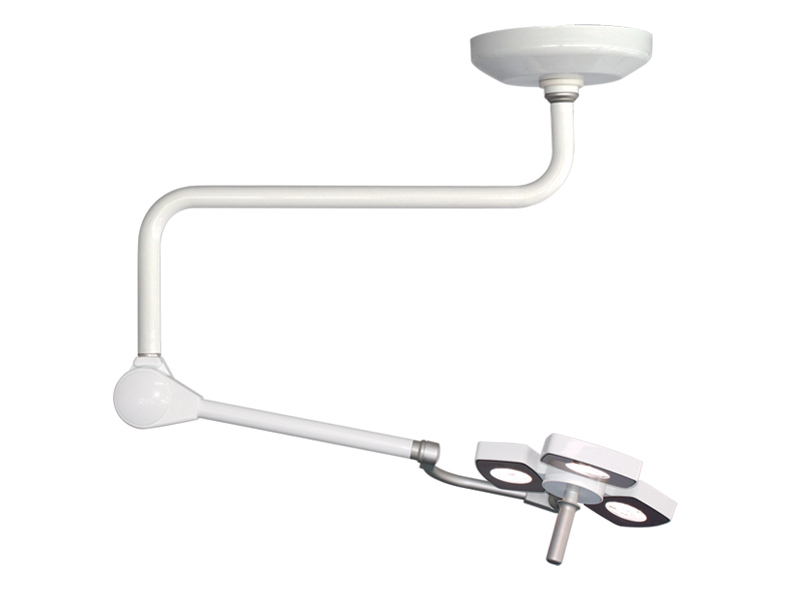

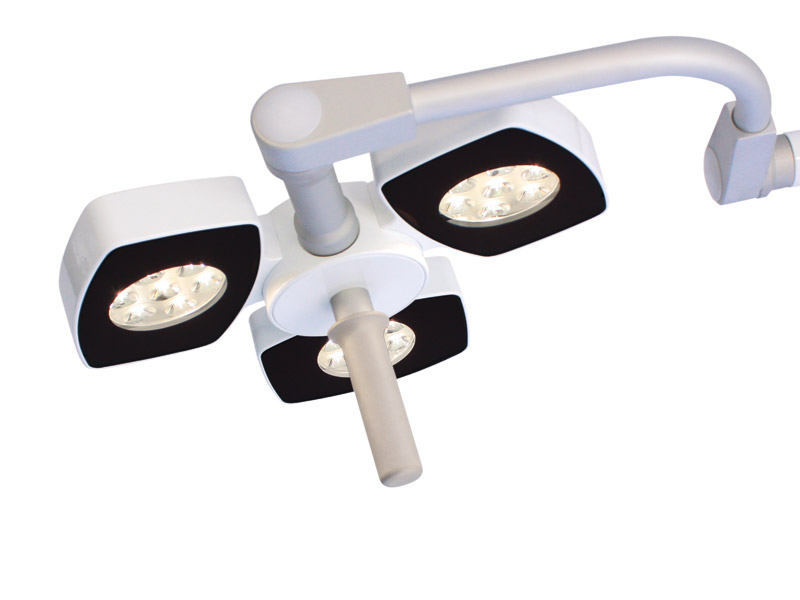

The award winning Series 3 ceiling offers continuous 360° rotation around the upper ceiling joint, providing maximum reach and range of movement for full patient coverage. A strong counter balanced arm design allows for effortless repositioning and is drift free. The three light head with dual handles rotate at both the light head and yoke allowing the user precise control over its brilliant illumination.
All of the Series 3 models are purpose designed for minor surgery and medical examinations providing outstanding intensity, colour temperature and patient comfort.
Please read our check list page for all the features that should be considered when choosing a medical examination light.
Technical Details
- Complies with Cardiac Protection requirements.
- Optional Colour Correction Filters for Halogen Lamps – to specify add /CCF.
- Optional 360° Continuous Rotating Ceiling Connector – at the upper rotation ceiling joint – to specify add /360°.
Note: Standard on Series 3 model. Optional extra on Series 1 model. - Suitable for Different Ceiling Heights.
Note: Ceiling height must be specified at time of order. - For ceiling heights lower than 2700mm a Z suspension arm is used.
| LIGHT SOURCES | |
| LED | 3 x 15W – to specify MSL315C |
| Halogen | 3 x 35W IRC to specify MSL335C |
| 3 x 50W IRC to specify MSL350C | |
| WATTAGE/ILLUMINATION | |
| LED | 3 x 15W – 80,800 lux @ 600mm |
| 3 x 15W – 53,200 lux @ 1000mm | |
| Halogen (IRC) | 3 x 35W – 54,000 lux @ 600mm |
| 3 x 35W – 28,476 lux @ 1000mm | |
| 3 x 50W – 64,800 lux @ 600mm | |
| 3 x 50W – 35,300 lux @ 1000mm | |
| BEAM DIAMETER | |
| LED | 3 x 15W – 127mm* @ 600mm |
| 3 x 15W – 132mm* @ 1000mm | |
| Halogen (IRC) | 3 x 35W – 140mm* @ 600mm |
| 3 x 35W – 180mm* @ 1000mm | |
| 3 x 50W – 170mm* @ 600mm | |
| 3 x 50W – 210mm* @ 1000mm | |
| (* measured at 50% of peak value) | |
| COLOUR TEMPERATURE | |
| LED | 3 x 15W – 4547°K |
| Halogen (IRC) | 3 x 35W – 3034°K |
| - without colour correction filter | 3 x 50W – 3080°K |
| - with colour correction filter | 3 x 35W – 4059°K |
| 3 x 50W – 4180°K | |
| COLOUR RENDERING INDEX (CRI) | |
| LED | 93 |
| Halogen (IRC) | 98 |
| SERVICE LIFE (DEPENDING ON HOURLY USE) | |
| LED | 35,000 – 50,000 hrs |
| Halogen | 2,000 – 4,000 hrs |
| VOLTAGE | |
| LED | 36 VDC |
| Halogen | 12 V |
| WEIGHT (APPROX.) | |
| Ceiling Mount 22 kg | |
