Series 1 Wall Mount

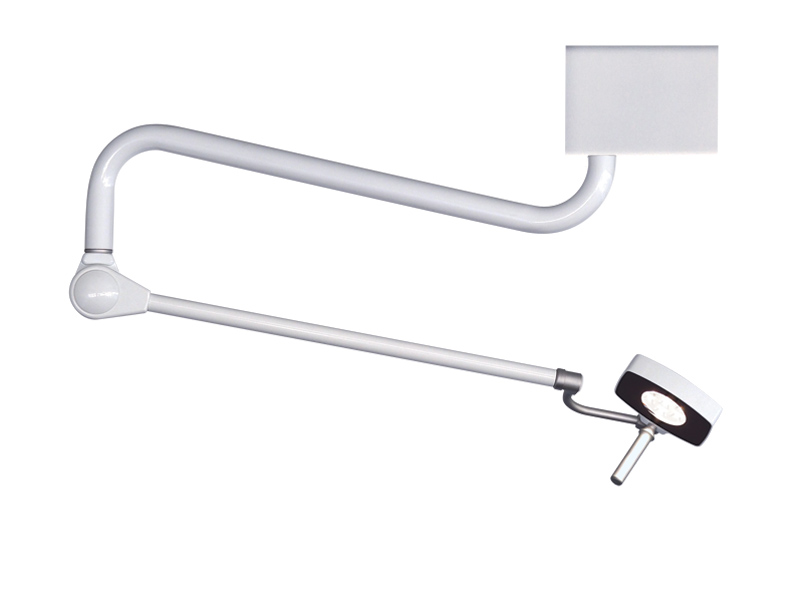

Series 1 Wall MountWith a sweep of 2200mm the Series 1 wall model maintains full patient coverage with the space saving design that can be folded back to the wall when not in use.

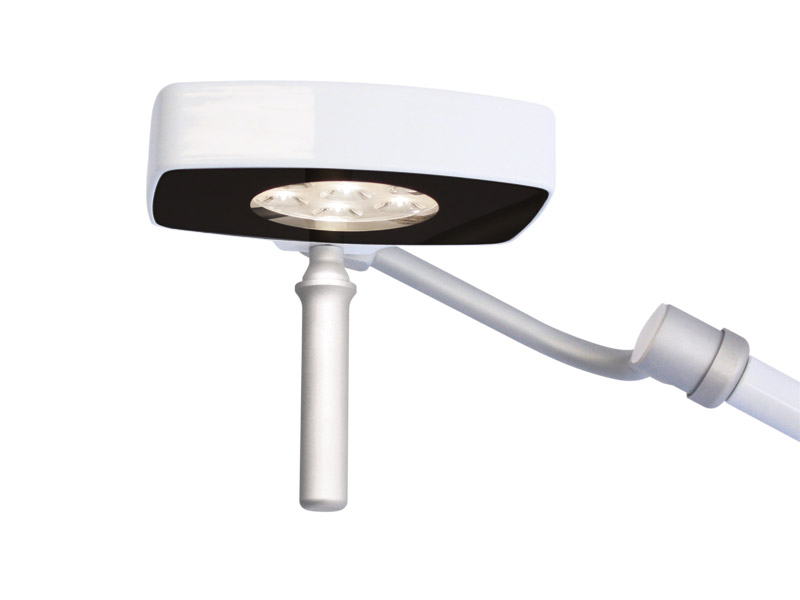

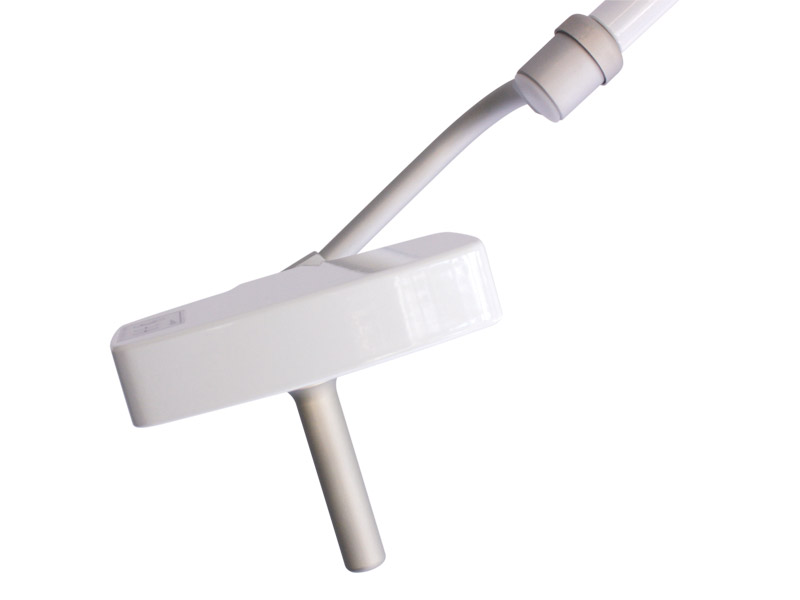

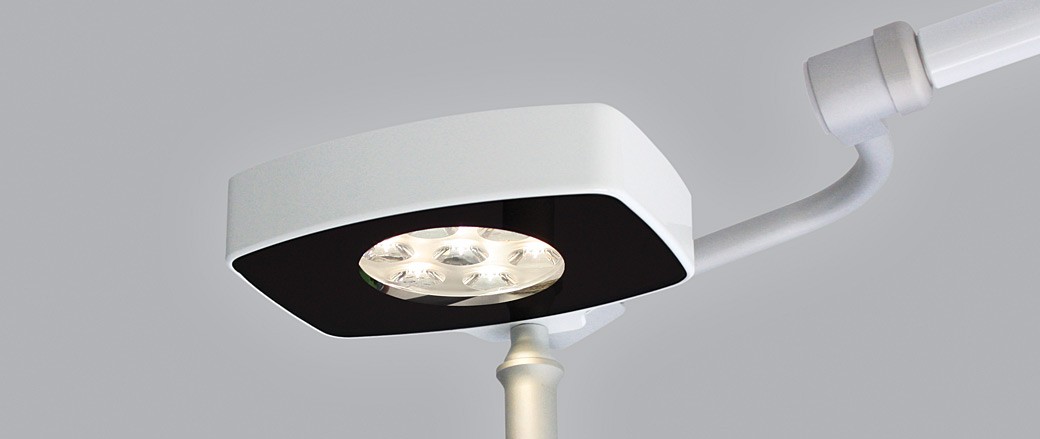

The Series 1 medical examination light is available with multiple lamp and mounting options. Using the same compact head profile it is available in either IRC tungsten halogen (35W or 50W) or the newer 15W LED version. Both options provide dual handles with the one being removable for sterilisation.

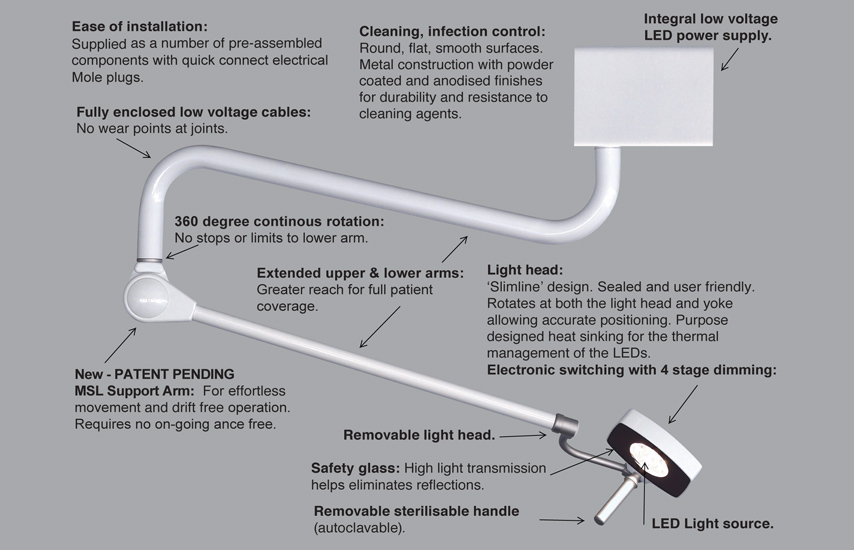

A strong counter balanced arm design allows for effortless repositioning and is drift free.

Please read our check list page  for all the features that should be considered when choosing a medical examination light.

Technical Details

  • Complies with Cardiac Protection requirements.
  • Optional Colour Correction Filters for Halogen Lamps- to specify add /CCF.
  • Optional Power Cord with Hospital Grade Plug
    - to specify add /FP.
    Note: Length of cord to be nominated at time of order.
LIGHT SOURCES
LED 1 x 15W to specify MSL115W
Halogen 1 x 35W IRC to specify MSL135W
  1 x 50W IRC to specify MSL150W
WATTAGE/ILLUMINATION
LED 1 X 15W – 44,900 lux @ 600mm
  1 x 15W – 18,800 lux @ 1000mm
Halogen (IRC) 1 X 35W – 32,000 lux @ 600mm
  1 x 35W – 11,000 lux @ 1000mm
  1 x 50W – 39,100 lux @ 600mm
  1 x 50W – 14,000 lux @ 1000mm
BEAM DIAMETER
LED 1 X 15W – 82mm* @ 600mm
  1 x 15W – 127mm* @ 1000mm
Halogen (IRC) 1 X 35W – 110mm* @ 600mm
  1 x 35W – 180mm* @ 1000mm
  1 x 50W – 120mm* @ 600mm
  1 x 50W – 190mm* @ 1000mm
(* measured at 50% of peak value)
COLOUR TEMPERATURE
LED 1 x 15W – 4546°K
Halogen (IRC) 1 x 35W – 3030°K
- without colour correction filter 1 x 50W – 3080°K
- with colour correction filter 1 x 35W – 4100°K
  1 x 50W – 4185°K
COLOUR RENDERING INDEX (CRI)
LED 93
Halogen (IRC) 98
SERVICE LIFE (DEPENDING ON HOURLY USE)
LED 35,000 – 50,000 hrs
Halogen 2,000 – 4,000 hrs
VOLTAGE
LED 36 VDC
Halogen 12 V
WEIGHT (APPROX.)
  Wall Mount 9 kg
