Series 1 Mobile Trolley MSL-SL116M



Product Overview

The MSL Series 1 is the ideal minor procedure and examination light for any healthcare environment. Multiple mounting configurations are offered in this comprehensive and high quality range.  Locally manufactured in-house from premium grade materials, it is a durable purpose built design to assist the user that requires exceptionally good light.

With all the practical features and design qualities of the ceiling and wall mounted models, the Series 1 mobile version offers a space saving design which is easily portable.

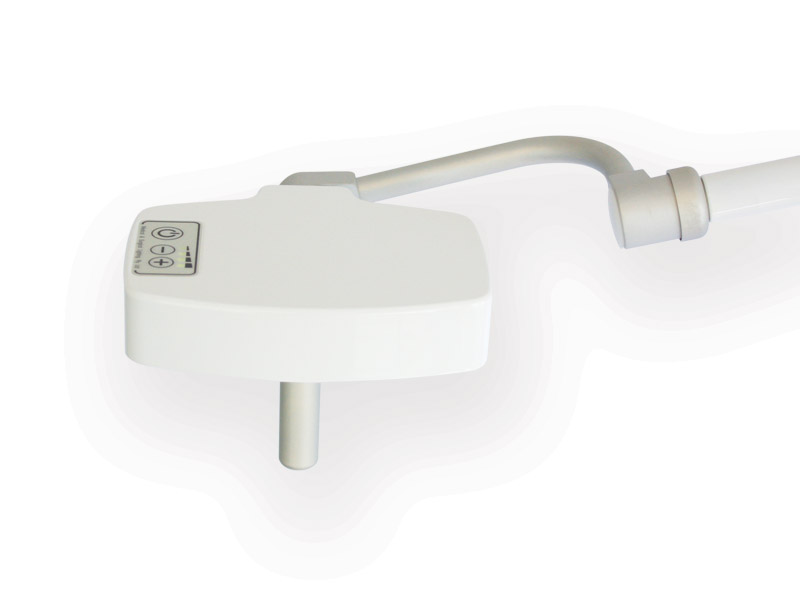

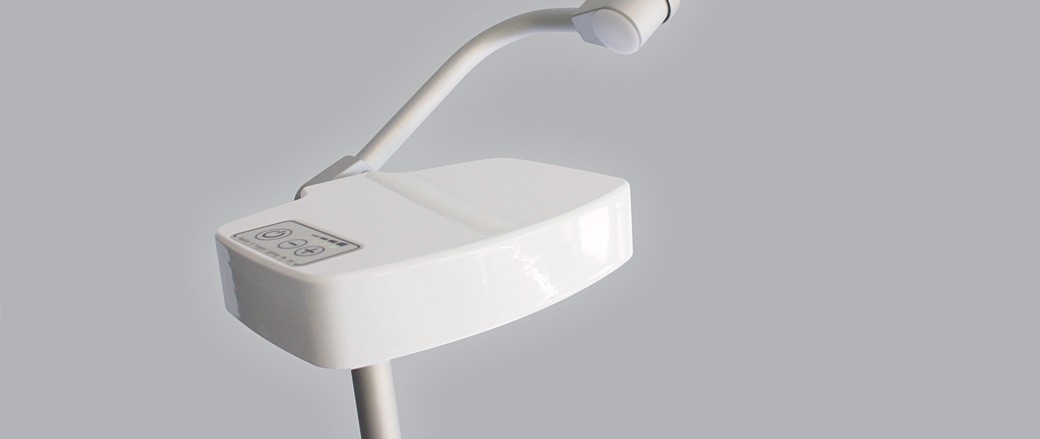

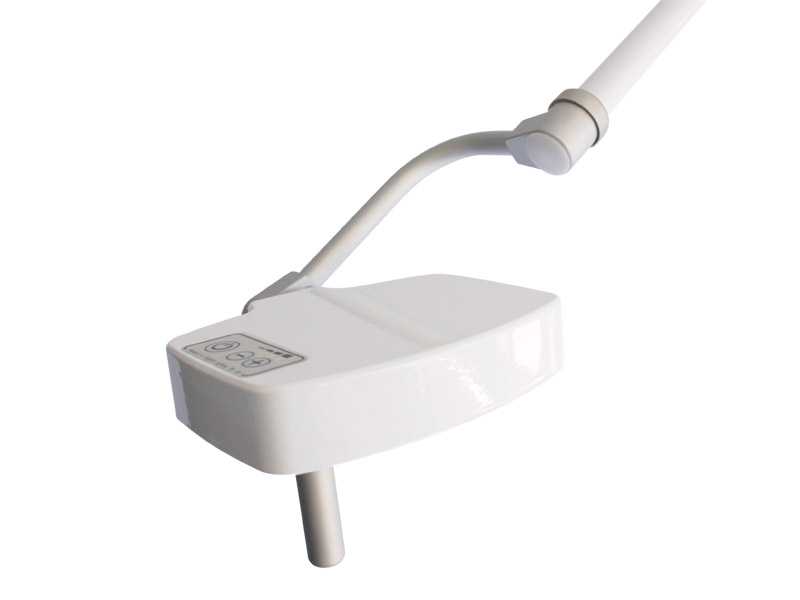

The counter balanced arm is lowered during movement so the centre of gravity is directly over the base making the mobile extremely stable. The light head rotates at both the light head and yoke allowing the user precise control over its brilliant illumination.

Features

  • LED light technology – 1 x 10W.
  • Counter balanced arm movement.
  • Compact five leg base with two opposing braked wheels
    for increased stability.
  • Standard wheels supplied are 50mm dia – optional heavy duty 75mm dia wheels are available – to specify add /HDW.
  • Three metre power cord with Hospital Grade Plug.

Technical Data

Light Source – compact LED module comprising 7 LEDs, driver and lens specifically designed for medical lighting tasks.
Wattage – 1 x 10W.
Dimming – 1 x 4 stage electronic dimming.
Illumination – 51,500 lux @ 600mm – 23,000 lux @ 1000mm
Light Source Average Life – 35,000-50,000 hours.
Beam Diameter – 89.7mm* @ 600mm – 133mm* @ 1000mm
(* measured at 50% of peak value).
Colour Temperature – 4213°K.
Colour Rendering Index – CRI 95. In addition the LED module has a high ‘Special CRI R9’ value (deep saturated red, not included in normal CRI calculations). For medical examination lighting tasks this R9 value is a key issue in diagnosis and accurate tissue identification. The MSL SL116M complies with the Cyanosis Observation Index (COI), meeting the requirements of AS/NZS 1680.2.5:1997 for examination lighting
Cardiac Protection – compliant.
EMC – compliant.
Voltage – 36 V DC.
Weight – 15 kg.
