Gallery – Series 1 Ceiling

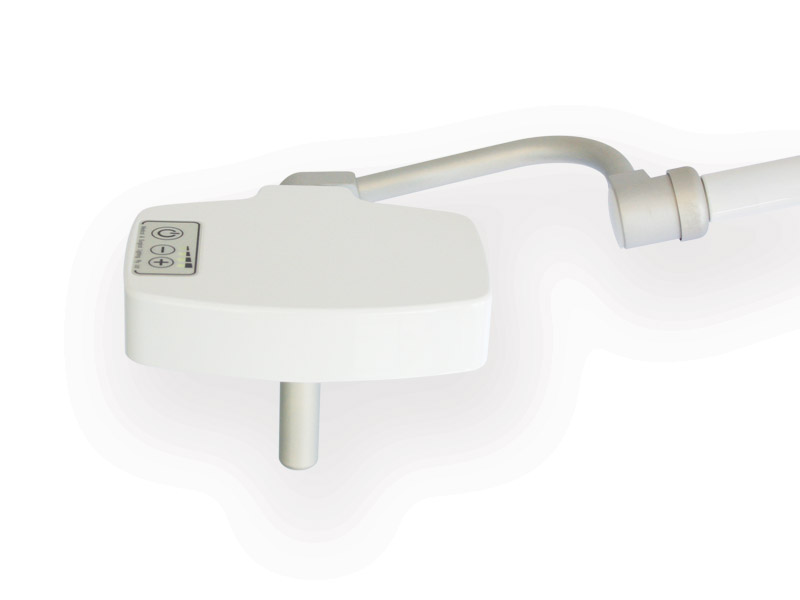

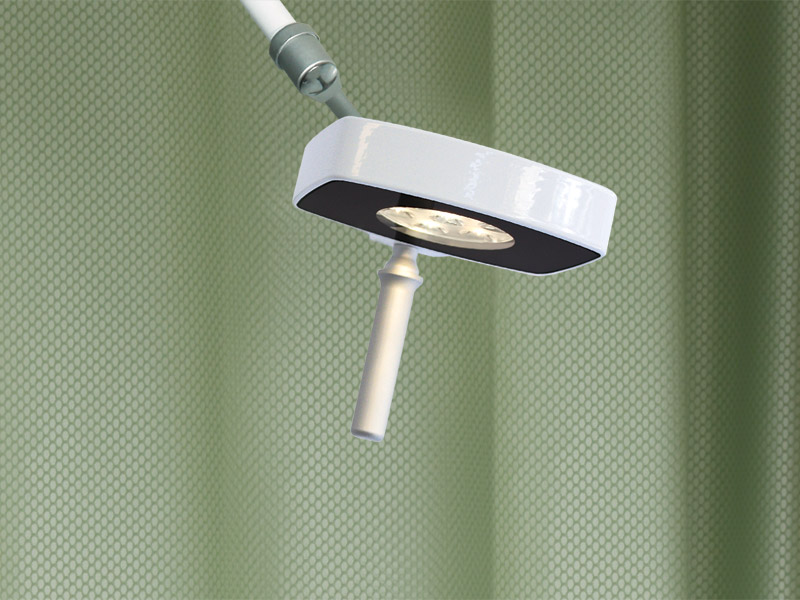

The Series 1 medical examination light is available with multiple lamp and mounting options. Using the same compact head profile it is available in either IRC tungsten halogen (35W or 50W) or the newer 15W LED version. Both options provide dual handles with the one being removable for sterilisation.
A strong counter balanced arm design allows for effortless repositioning and is drift free.

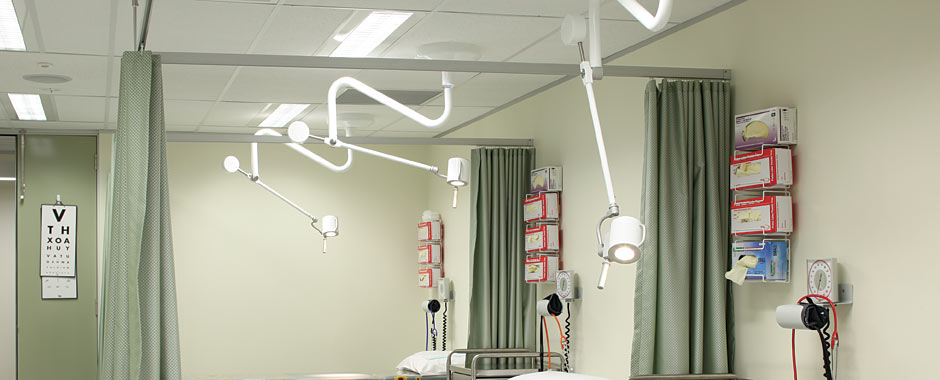

The ceiling mounted option provides the user an unobstructed use of the area allowing maximum flexibility and range of movement for full patient coverage. The series 1 rotates at both the light head and yoke allowing the user precise control over its brilliant illumination.
Please read our check list page for all the features that should be considered when choosing a medical examination light.
Technical Details
- Complies with Cardiac Protection requirements.
- Optional Colour Correction Filters for Halogen Lamps – to specify add /CCF.
- Optional 360° Continuous Rotating Ceiling Connector – at the upper rotation ceiling joint – to specify add /360°.
Note: Optional extra on Series 1 model. Standard on Series 3 model. - Suitable for Different Ceiling Heights.

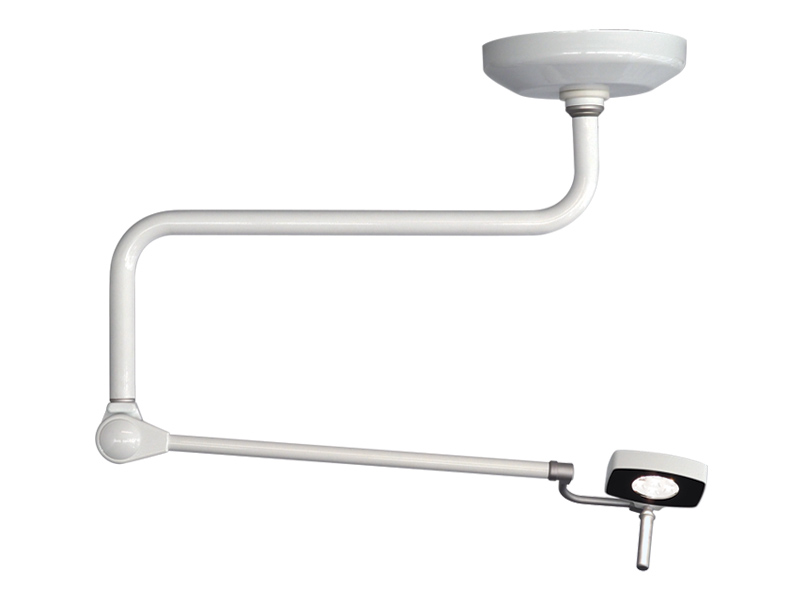

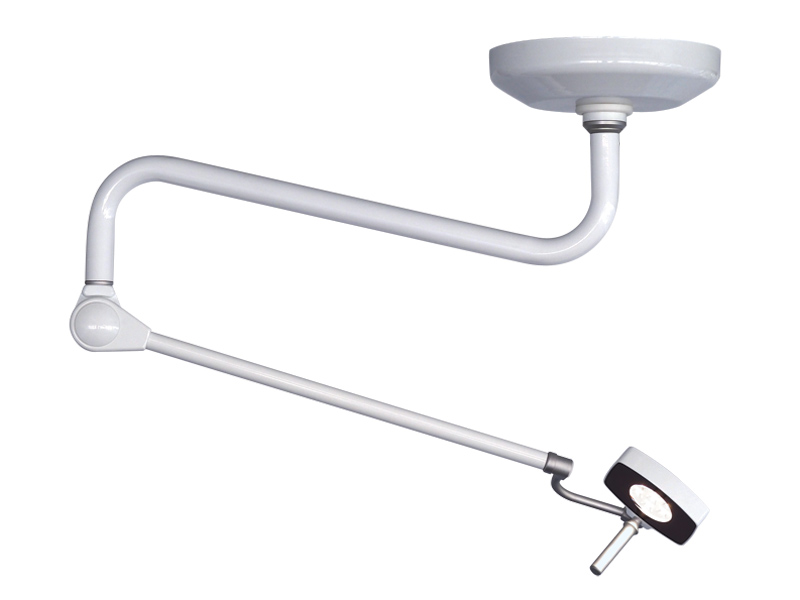

Note: Ceiling height must be specified at time of order. - For ceiling heights lower than 2630mm a Z suspension arm is used.
| LIGHT SOURCES | |
| LED | 1 x 15W – to specify MSL115C |
| Halogen | 1 x 35W IRC to specify MSL135C |
| 1 x 50W IRC to specify MSL150C | |
| WATTAGE/ILLUMINATION | |
| LED | 1 X 15W – 44,900 lux @ 600mm |
| 1 x 15W – 18,800 lux @ 1000mm | |
| Halogen (IRC) | 1 X 35W – 32,000 lux @ 600mm |
| 1 x 35W – 11,000 lux @ 1000mm | |
| 1 x 50W – 39,100 lux @ 600mm | |
| 1 x 50W – 14,000 lux @ 1000mm | |
| BEAM DIAMETER | |
| LED | 1 X 15W – 82mm* @ 600mm |
| 1 x 15W – 127mm* @ 1000mm | |
| Halogen (IRC) | 1 X 35W – 110mm* @ 600mm |
| 1 x 35W – 180mm* @ 1000mm | |
| 1 x 50W – 120mm* @ 600mm | |
| 1 x 50W – 190mm* @ 1000mm | |
| (* measured at 50% of peak value) | |
| COLOUR TEMPERATURE | |
| LED | 1 x 15W – 4546°K |
| Halogen (IRC) | 1 x 35W – 3030°K |
| - without colour correction filter | 1 x 50W – 3080°K |
| - with colour correction filter | 1 x 35W – 4100°K |
| 1 x 50W – 4185°K | |
| COLOUR RENDERING INDEX (CRI) | |
| LED | 93 |
| Halogen (IRC) | 98 |
| SERVICE LIFE (DEPENDING ON HOURLY USE) | |
| LED | 35,000 – 50,000 hrs |
| Halogen | 2,000 – 4,000 hrs |
| VOLTAGE | |
| LED | 36 VDC |
| Halogen | 12 V |
| WEIGHT (APPROX.) | |
| Ceiling Mount 12 kg | |
